E300 4K Video Recorder



Key Features
• HDMI 2.0 pass-through, comply with HDCP 2.2
• Input and Output: 4K60
• Capture same video resolutions as input:
UHD: 4K30, 4K25, 4K24
FHD: 1080p60/p50/p30/p25/p24
HD: 720p60, 720p50
SD: 576p50, 480p60
• Capture format: H.264/H.265 High profile/AAC/MP4/TS
• Sampling rate: 48kHz PCM
• Record from STB, Receivers, OTT Boxes, Google Stick, Roku etc.
• Record gameplay from Game consoles like PS5, Xbox One & Xbox 360, Nintendo Switch & Wii U etc.
• Record as MP3 audio file from HDMI In/Line In (128kps/196kps/320kps)
• Bitrate in H.264 recording: FHD 16Mbps (Max:1080P60)
• Bitrate in H.265 recording: UHD 22Mbps, FHD 16Mbps (Max:4K30)
• Modify the recording file name or customize the recording file name through OSD
• Support pause recording in Video & Audio recording.
• Recording files can be stored in 16GB or unlimited.
• Storage can be TF, USB, or hard disk (TF 512G/USB 1T/Hard Disk 4T or more)
• Support: FAT32/NTSF/exFAT/GPT/SSD or more
• Screenshot format: JPG
• Instant Playback & Pre-set schedule recording
• OSD (On Screen Display) menu with multi-language
• UVC support for PC at 1080p60 USB3.0 (Windows/Linux/MAC)


I/O Connectors
• HDMI In & Out (HDMI 2.0)
• Line In & Line Out & Microphone (3.5mm audio jack)
• USB 3.0 type A (for storage)
• TF Card (for storage)
• USB-C 3.0 (for streaming to PC)

Package Contents
• E300 4k Video Recorder
• Remote Control
• HDMI 2.0 cable and USB-C cable (0.8m)
• Power adapter 12V1A
• Quick Start Guide

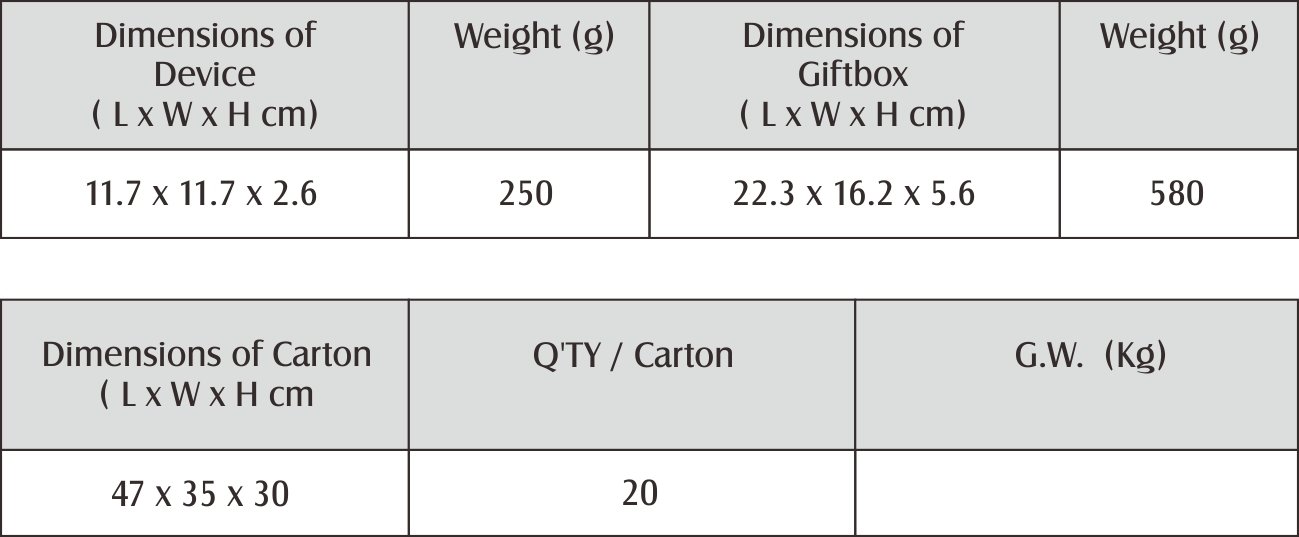

Package Information
